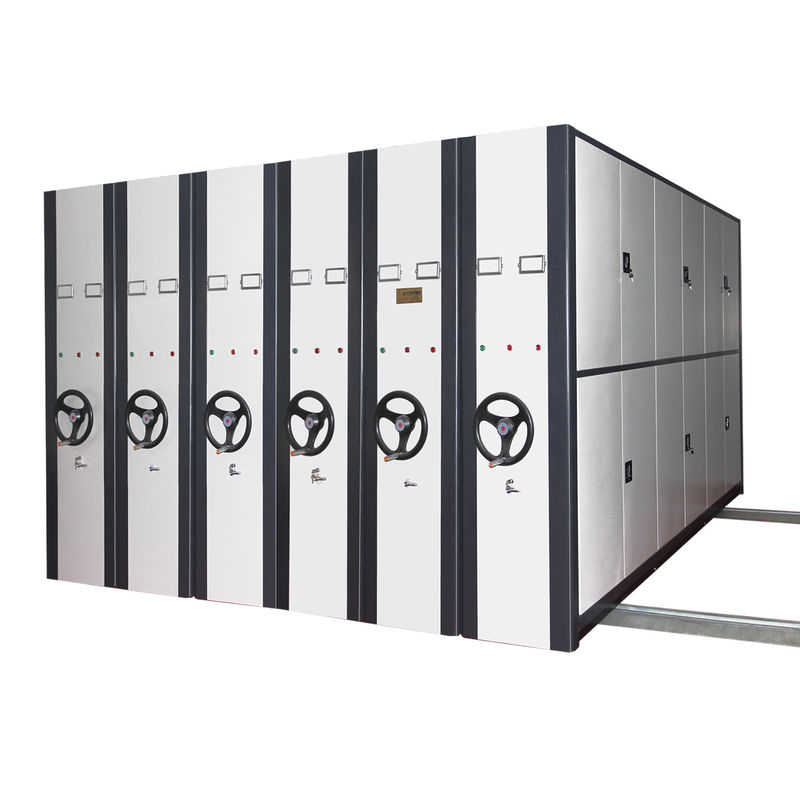

Manual mobile shelving is controlled by hand wheel. Usually divided into two kinds of single and double sided frame. It is the most common type of archives cabinet, also the best selling cabinet, suitable for the various kinds of archives information room, record room, archives storehouse, library files, books, medical records, etc. Product specifications can be produced according to customer's requirements.

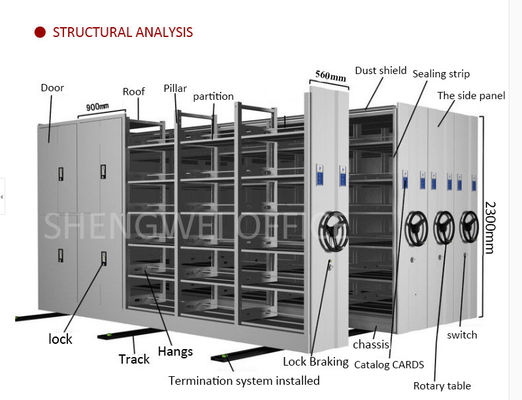

Product Features of Our Steel Movable Storage Shelves Mobile Compactor System Sliding Files Metal Shelf Cabinet
- Adjustable shelves with dual purpose for box file/hanging files.
- Knock down and easy assembling construction.
- With 80kg loading capacity for each shelf.
- Different locks for option.
- Master key available.
- Core removable key available.
Material Detail:
chassis : 2.8mm hot-rolled steel, GB710-88
rail : 20*20 solid square steel, GB699-88
sill beam : 2.8mm hot-rolled steel
axle bumper & clamping device : 2.0 hot-rolled steel
upright : 1.5mm cold-rolled steel, GB710-88
partition board : 1.0mm cold-rolled steel, GB710-88
hanging board : 1.0mm cold-rolled steel, GB710-88
shelf board : 1.0mm cold-rolled steel, GB710-88
baffle : 0.8mm cold-rolled steel, GB710-88
door frame : 0.8mm cold-rolled steel, GB710-88
door : 1.0mm cold-rolled steel
positioning module : ABS injection moulding
side panels : deluxe concave-convex type 0.9mm cold-rolled steel, GB710-88
bearing : double the nucleus HR204E, GB710-88
transmission shaft : Φ20 solid steel 45#, GB699-88
steel pipe connection : Φ20 solid steel 45#, GB699-88
steel roller : HT200 gray iron, GB9439-88, 1000kg/roller
gear : ZG45 roller, GB1135-89
motorcycle chain : Φ8.5 pitch, 12.7FR 420, GB1244-85, ISO9001 certified
handle : imported plastic steel, A bi-directional overrunning clutch structure GB1285-85
handle assembly : roller bearing, A bi-directional overrunning clutch structure GB1285-85
side column lock kit : 808 lock, luxury, each column are provided with braking device
gate lock : buckle type square lock
shock-proof seal : 20mm, magnetic refrigerator door stopper
roof : 0.8mm cold-rolled steel, GB710-88
dust guard, rat guard : 0.8mm cold-rolled steel, GB710-88
device preventing tilting : 3.0mm cold-rolled steel, GB710-88
preprocessing : Zn phosphorization, USA standard, ISO9001 certified
high pressure electrostatic spray : epoxy polyester mixed powder
water washing : ≤10ЦS conductivity, USA standard
